SPECS:
UI USER INTERFACE:
UPGRADES:
GENERAL INFORMATION:
COMPLIANCE STANDARDS:
| CHARGING TYPE | MODE 3 CHARGING, LEVEL 2 |
| INPUT/OUTPUT POWER RATING AND CURRENT | IEC RATINGS: SINGLE PHASE UP TO 7.4 kW/ 32 A THREE PHASE UP TO 22 kW/ 32 A |
| INPUT/OUTPUT VOLTAGE | SINGLE PHASE: 110 ... 240 V TH REE PHASE: 380 .. .415 V, 50 / 60 Hz |
| AUTO SWITCHING | AUTO SWITCHING FROM THREE PHASE TO SINGLE PHASE IN CASE OF PHASE FAILURE/ OVER VOLTAGE |
| SOCKET OUTLET OR CONNECTOR TYPE | TYPE 1 OR TYPE 2 |
| POWER ADJUST | ADJUSTABLE POWER FROM 1.5kW TO 22kW (FROM APP/ BUTTONS) |
| PEAK HOURS | CHARGER AUTOMATICALLY SWITCH OFF IN PEAK HOURS TO AVOID HIGH TARRIF |
| PROTECTION | OVERCURRENT, OVERVOLTAGE, UNDERVOLTAGE, GROUND FAULT INCLUDING, INTEGRATED SURGE PROTECTION, INTERLOCKING |
| ENERGY METERING | ENERGY OF THE DAY, MONTH, TOTAL |

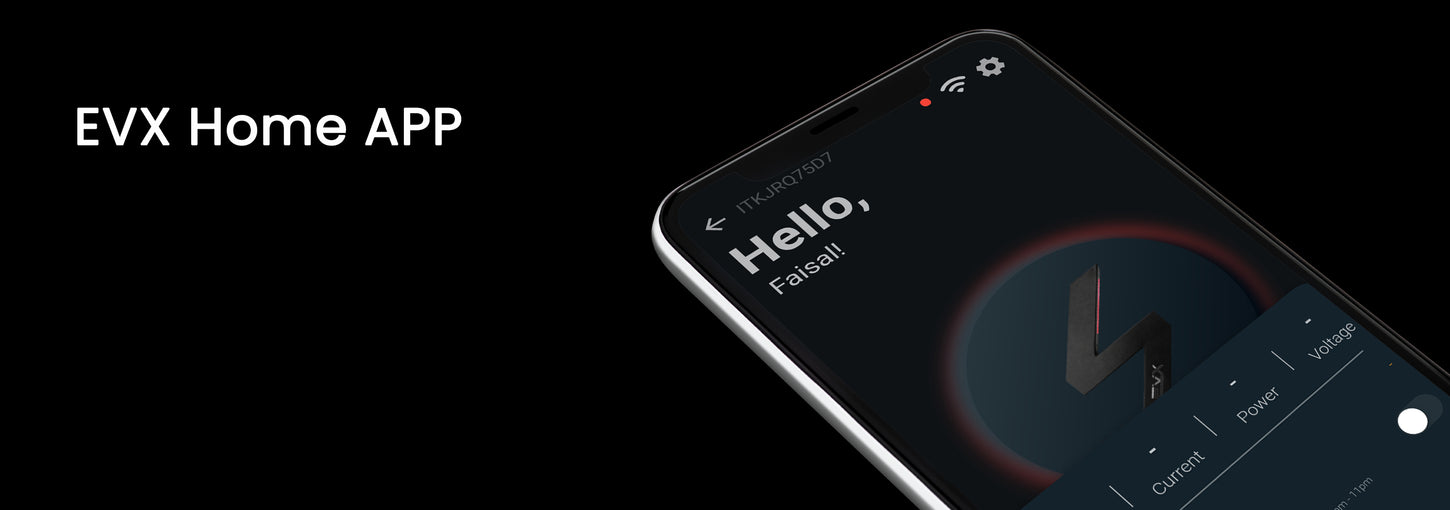

| UI (USER INTERFACE) CONNECTIVITY | WiFi, BLUETOOTH (BLE) |
| USER AUTHENTICATION | EVXHOME APP |
| USER INTERFACE | EVX HOME APP, EVXWEB PORTAL |
| ON/ OFF | CHARGER CAN BE TURN ON/ OFF FROM MOBILE APP |
| STATUS INDICATION | PRISMATIC LED'S |
| NOTIFICATIONS | MOBILE NOTIFICATI ONS IN CASE OF EVENTS |
| MONITORING | REAL TIME MONITORING |
| SOFTWARE UPDATE | OTA (OVER THE AIR) |
| PRODUCT LIFE | 5-6 YEARS |
| IP AND IK RATING | IP54, IK10 |
| OPERATING ALTITUDE | 4000M |
| OPERATING TEMPERATURE RANGE | 20 .. .50 C (DERATING MAY APPLY) |
| STORAGE TEMPERATURE RANGE | -40 ... 80 C |
| MOUNTING | WALL OR FLOOR USING A PEDESTAL |
| DIMENSION 7kW (H x W x D) 22kW (H x W x D) |
340 x 238 x 63.5 mm 508 x 304.8 x 63.5 mm |
| PRODUCT LIFE | 5-6 YEARS |
| IP AND IK RATING | IP54, IK10 |
| OPERATING ALTITUDE | 4000M |
| OPERATING TEMPERATURE RANGE | 20 .. .50 C (DERATING MAY APPLY) |
| STORAGE TEMPERATURE RANGE | -40 ... 80 C |
| MOUNTING | WALL OR FLOOR USING A PEDESTAL |
